| CTESS 60/20 | AC | |||
|---|---|---|---|---|
| ♦Nominal capacity (kWh) | 60 |
|
||
| ♦Battery Type | LFP (LiFePO4) | |||
| ♦Voltage (V) | 576 | |||
| ♦Max AC input power (kW) | 20 | |||
| ♦AC output nominal power (kW) | 20 | |||
| ♦Weight (kg) | 1100 | |||
| ♦Dimensions (L x W x H) (mm) | 1450x1000x1478 | |||
| ♦Lifetime (80% DoD) | 6000 | |||
* Download the CTESS brochure, with all the details and specifications

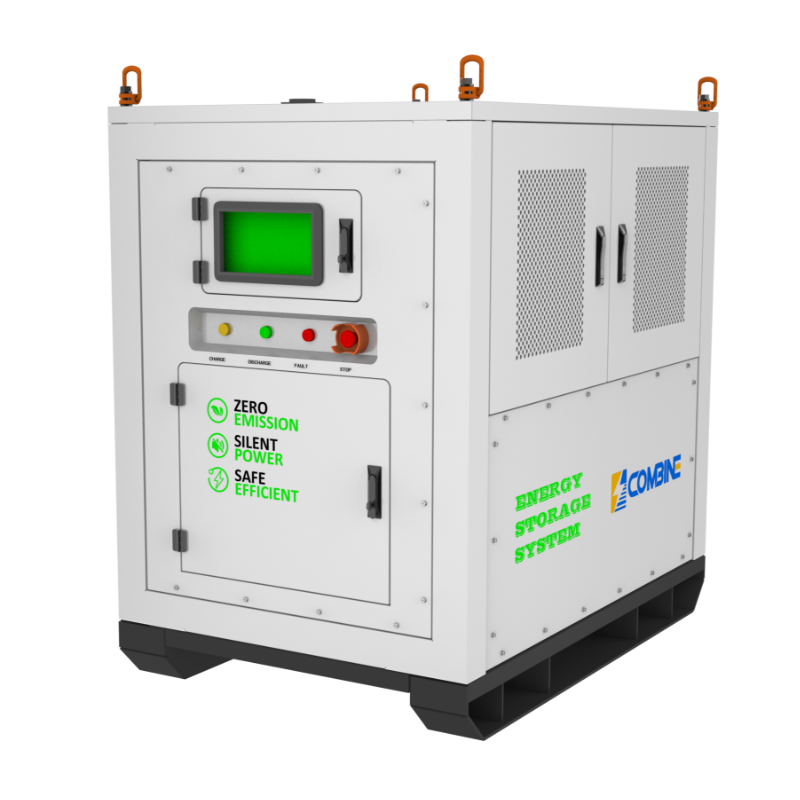

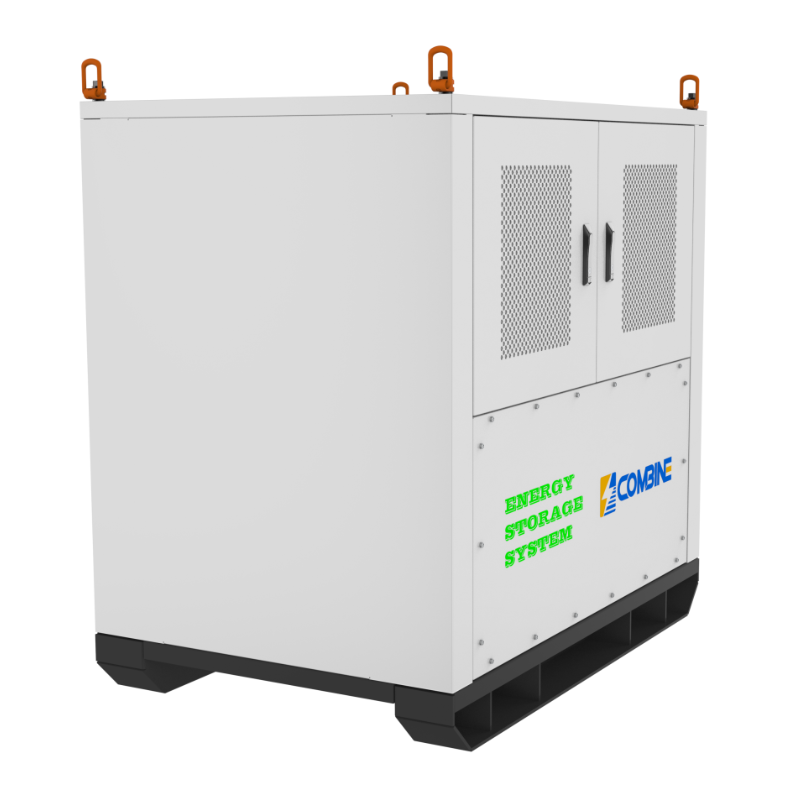

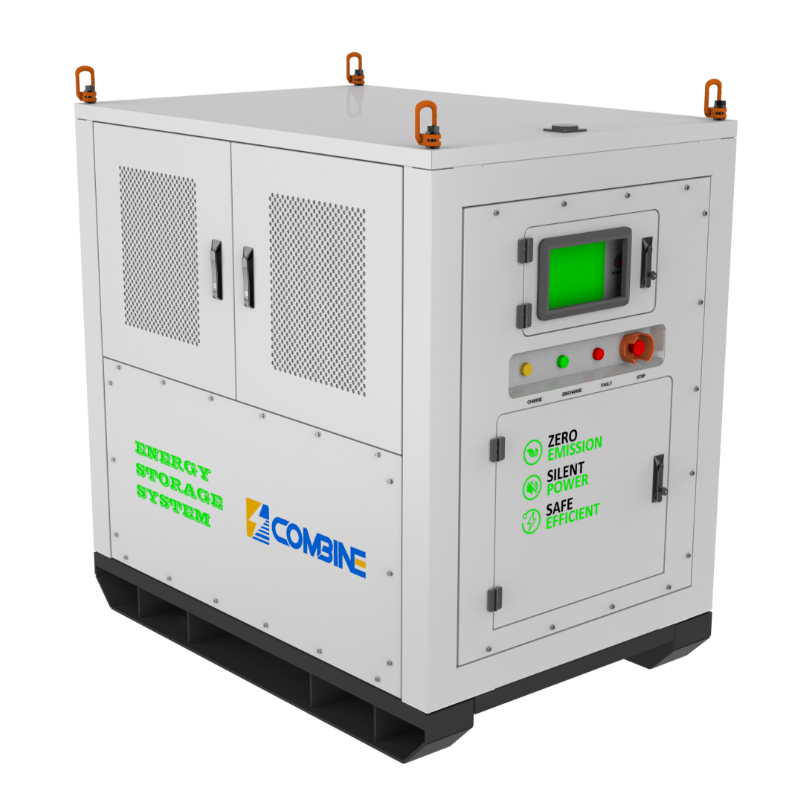

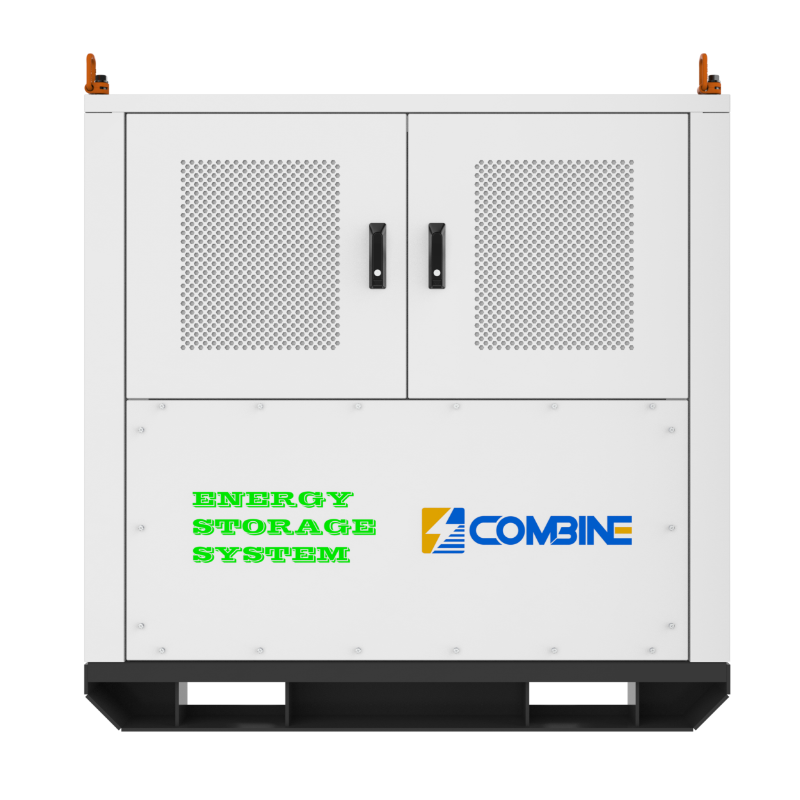

This 60kWh 20kW battery energy storage system is built with a lightweight structure for enhanced mobility, serving as an excellent portable power source and emergency backup solution. As a compact mobile energy storage system, it offers convenient transport and quick deployment for construction sites and small commercial locations. It delivers reliable three-phase AC power for peak shaving and daily backup, ideal for businesses seeking flexible temporary energy. With optimized weight reduction, it eases on-site handling while maintaining high energy density. The system supports stable operation for small machinery and office equipment, acting as a dependable mobile charging option. Its durable design and low maintenance make it suitable for rental energy and short-term industrial support.
The Combine CTESS mobile charging unit serves as an ideal solution for providing electrified power in regions where the power grid is either weak or non-existent. This Mobile Energy Storage System has 60 kWh and comes fitted with a 20 kW AC output, enabling rapid charging for motors, trucks, and passenger cars alike. Additionally, it can supply power to tools and other electrical equipment through its multiple three-phase or single-phase output ports.And it can be equipped with a CCS2 DC charging gun, providing a continuous and reliable fast energy replenishment experience.
This Mobile Energy Storage System helps reduce diesel generator runtime by up to 65%, lowering fuel costs, maintenance expenses, and carbon emissions. By integrating renewable energy sources such as solar panels, the Battery Energy Storage System can provide sustainable power throughout the working day.
The 30kW AC output supports continuous operation of various electrical equipment, making this Mobile Battery Energy Storage System suitable for construction sites, mining operations, infrastructure projects, and temporary power stations.
Designed for mobility, the Mobile Energy Storage System can be transported easily between job sites. Plug-and-play functionality allows operators to deploy the system quickly without complex installation procedures.
The integrated Battery Management System continuously monitors battery status, voltage, temperature, and energy flow to ensure safe and efficient operation. The Mobile Energy Storage System automatically optimizes charging and discharging performance for maximum energy utilization.
The system is designed in accordance with European safety and environmental requirements. High-quality components ensure long-term reliability even under demanding operating conditions.

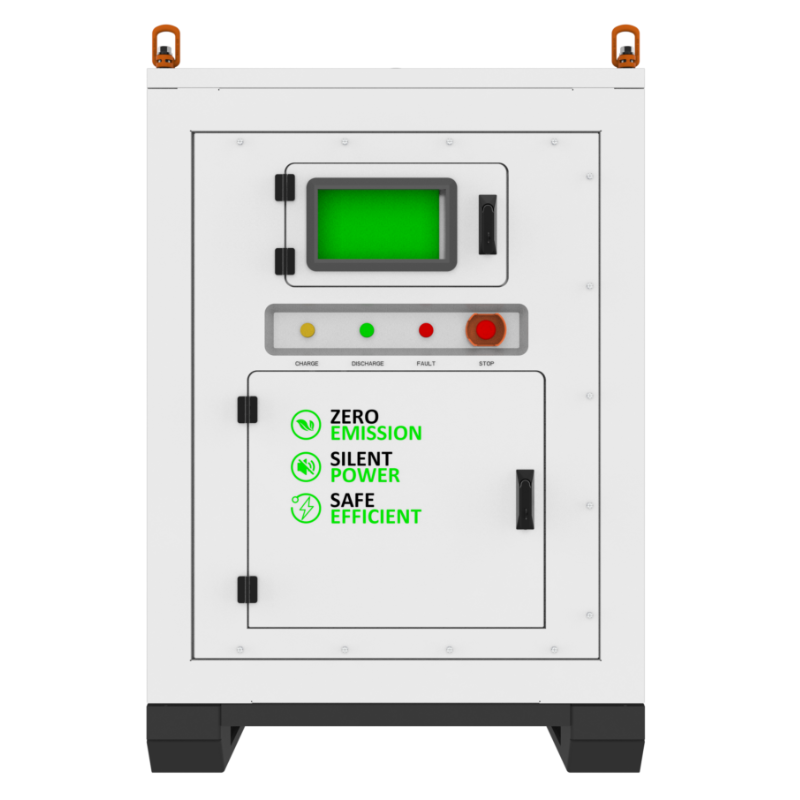

A large touchscreen display provides real-time information on battery status, power output, charging status, system alarms, and operational performance. The intuitive interface allows operators to monitor and manage the Mobile Energy Storage System with minimal training. Remote monitoring options are also available for fleet and project management.
Whether you need a Mobile Energy Storage System for construction sites, renewable energy integration, emergency backup power, or off-grid applications, our engineering team can provide customized solutions tailored to your requirements.
Contact us today to learn more about our 60kWh Mobile Energy Storage System and receive a professional quotation for your project.
